Cutting Method

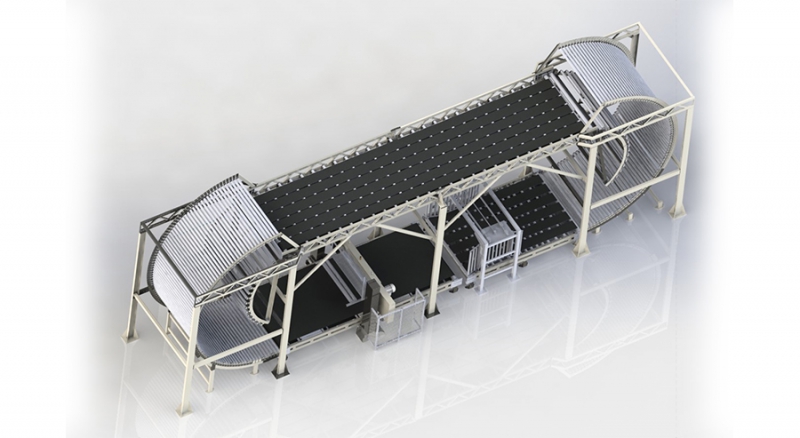

The peeling process is performed by rotating the sponge block over the conveyor belts running synchronously with each other.
|
|
|
CUTTING DIMENSIONS |
STANDARD |
OPTIONAL |
|
Width |
2300mm |
2500mm |
|
Length |
40m |
30m, 60m, 120m |
|
Height |
1300mm |
1500mm |
The peeling process is performed by rotating the sponge block over the conveyor belts running synchronously with each other.
Convenient control panel and interface make it easy for the operator.
The machine is manufactured according to European standards and has CE certification.
Cutting speed: 120 m/min.
Cutting precision: ±0,1 mm
Flexible PU foam (Polyester and Polyether), Rebonded, Viscoelastic, Latex etc. materials can be cut.
Angle adjustment between 0 and +7 degrees can be made manually with the cutting unit motor drive system.
Automatic time defined grinding system with stable and powerful motor driven grinding unit.
Servo controlled cylinder system that can work synchronously with block speed for high cutting accuracy.
Cooled filter system that absorbs and removes dust and sparks generated during sharpening.
