Cutting Method

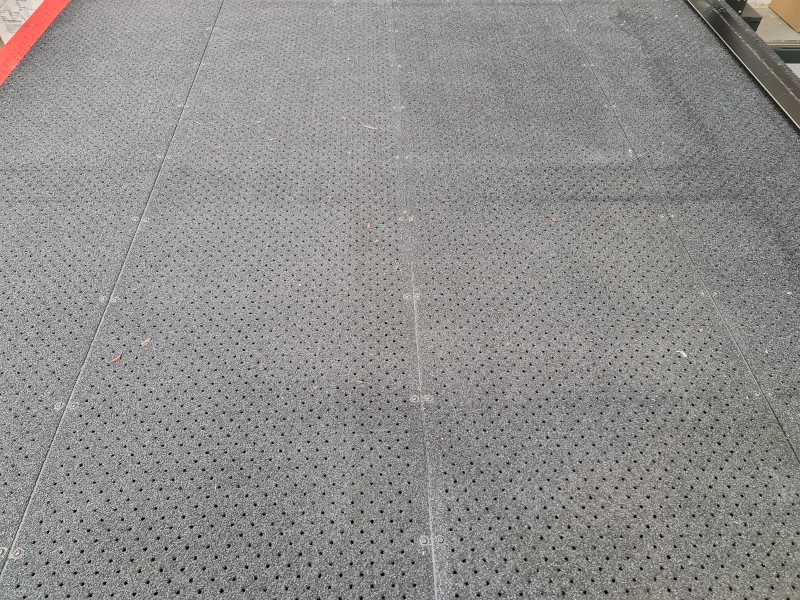

With a high suction vacuum system, the blocks are fixes and work together with the automatic angle adjustment system for precise cutting at high speeds.
|
|
|
CUTTING DIMENSIONS |
STANDARD |
OPTIONAL |
|
Table Width |
2250mm |
2500mm |
|
Table Length |
2250mm |
2500mm |
|
Height |
1300mm |
1500mm |
With a high suction vacuum system, the blocks are fixes and work together with the automatic angle adjustment system for precise cutting at high speeds.

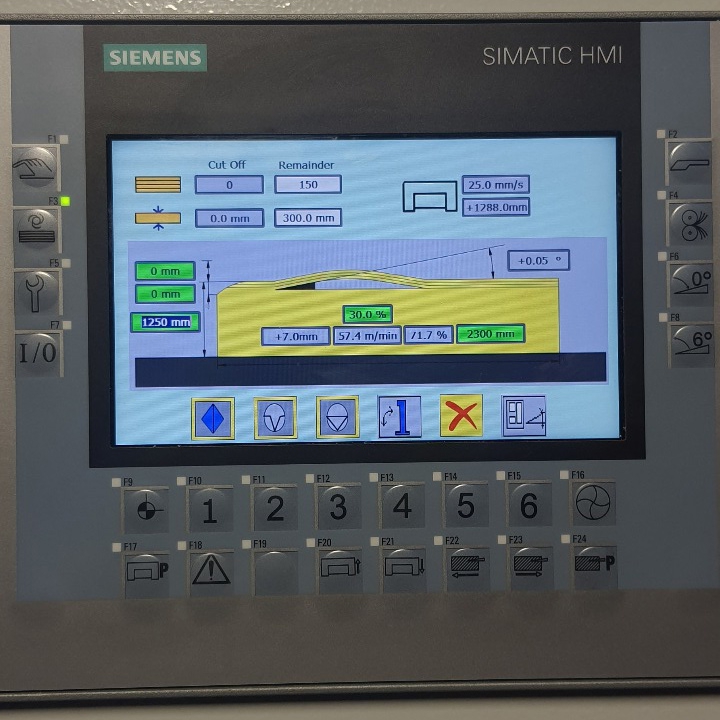

Convenient control panel and interface make it easy for the operator.
The machine is manufactured according to European standards and has CE certification.
The cutting speed can be adjusted between 0 – 80 m/min.
Cutting precision: ± 0,2 mm for thicknesses between 2-10 mm, ±0,3 mm for thicknesses of 10 mm and above
Minimum cutting thickness: 2 mm

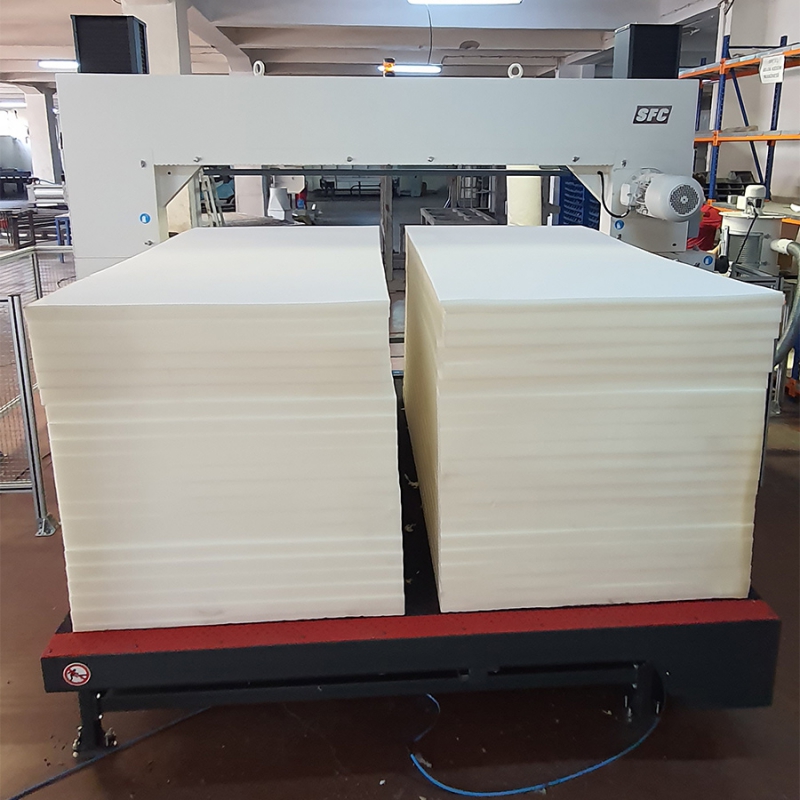

Flexible PU foam (Polyester and Polyether), Rebonded, Viscoelastic, Latex etc. materials can be cut.

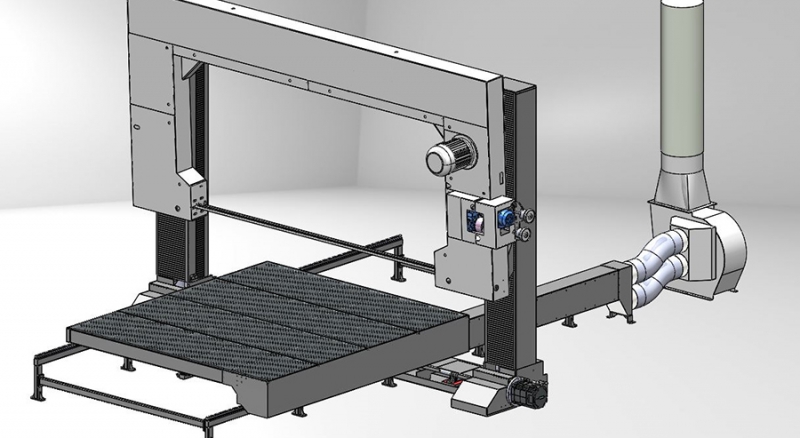

Vacuum and dust filter system that keeps the material stable during the cutting process.
Automatic time defined grinding system with stable and powerful motor driven Sharpening Unıt.

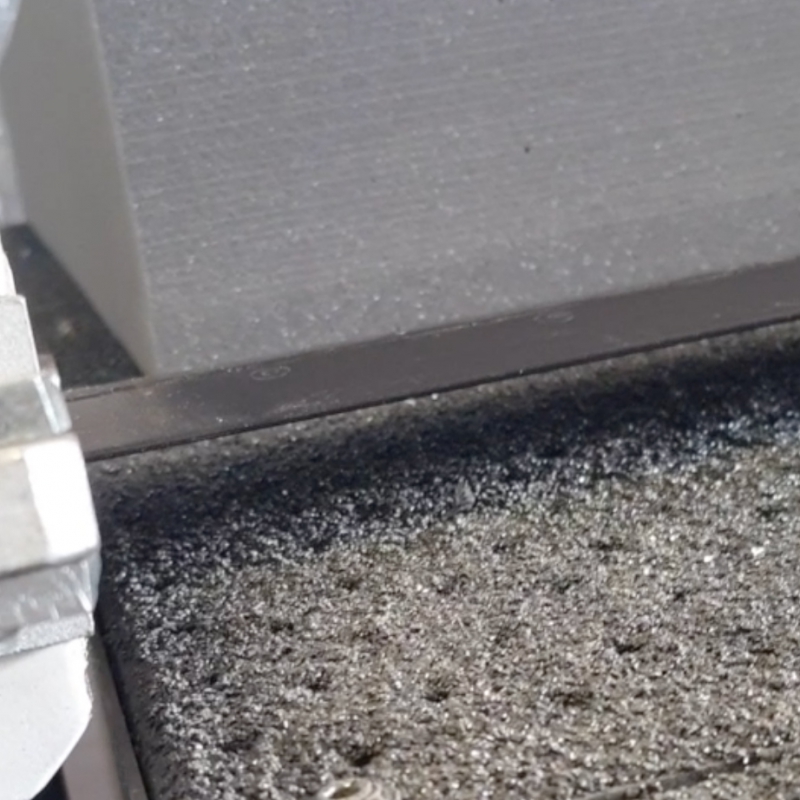

Blade guidance system, selected from high-strength steel material, with Teflon coating, for precision in the foam section of the upper densities.
Cooled filter system that absorbs and removes dust and sparks generated during sharpening.
It minimizes the guide friction by spraying silicon spray on the blade guide surface at certain periods.
Angle adjustment between -1 and +6 degrees can be made manually or automatically with the cutting unit motor drive system. Angle recipe can be created for products with different densities.
